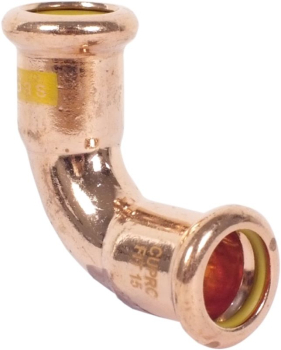

90° Elbow

90° Elbow

Descriptions

M Profile copper and copper alloy press fittings available 15mm to 35mm produced in accordance with En1254-7 -2021 and BSI KM approved, license number KM775908. Suitable for use with copper tube produced to EN1057, above ground use only, for use with 2nd and 3rd family gases.  Supplied with a HNBR (Hydrogenated Arcylonitrie Butadiene) O ring. These fittings have been approved by BSI and have passed the high temperature leakage rate test at 650°C for 30 minutes.

No detailed specifications are available for this product.

There are no downloads for this product.

There are no reviews for this product yet. Be the first to add one!

Code Description Max Working Pressure Gas Working Temperature Range Price
GPFEL15 Gas Press Fit 15mm x 90° Elbow 5 Bar LPG & Natural Gas -20°C to +70°C
You need to be logged in to see prices.
GPFEL22 Gas Press Fit 22mm x 90° Elbow 5 Bar LPG & Natural Gas -20°C to +70°C
You need to be logged in to see prices.
GPFEL28 Gas Press Fit 28mm x 90° Elbow 5 Bar LPG & Natural Gas -20°C to +70°C
You need to be logged in to see prices.
GPFEL35 Gas Press Fit 35mm x 90° Elbow 5 Bar LPG & Natural Gas -20°C to +70°C
You need to be logged in to see prices.
