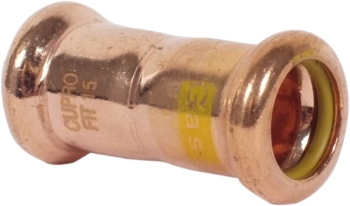

Coupler

M Profile copper and copper alloy press fittings available 15mm to 35mm produced in accordance with En1254-7 -2021 and BSI KM approved, license number KM775908. Suitable for use with copper tube produced to EN1057, above ground use only, for use with 2nd and 3rd family gases.  Supplied with a HNBR (Hydrogenated Arcylonitrie Butadiene) O ring. These fittings have been approved by BSI and have passed the high temperature leakage rate test at 650°C for 30 minutes.

No detailed specifications are available for this product.

There are no downloads for this product.

There are no reviews for this product yet. Be the first to add one!

Code Description Max Working Pressure Gas Working Temperature Range Price
GPFCO15 Gas Press Fit 15mm Coupler 5 Bar LPG & Natural Gas -20°C to +70°C
GPFCO22 Gas Press Fit 22mm Coupler 5 Bar LPG & Natural Gas -20°C to +70°C
GPFCO28 Gas Press Fit 28mm Coupler 5 Bar LPG & Natural Gas -20°C to +70°C
GPFCO35 Gas Press Fit 35mm Coupler 5 Bar LPG & Natural Gas -20°C to +70°C
